K'MX 632 DUO

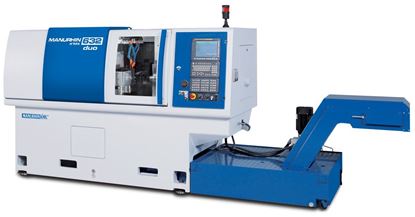

Sliding headstock (Swiss type) automatic lathe MANURHIN K’MX 632 DUO is designed for productive machining of parts from the bars of maximal diameter 32 mm. As the spindle bore diameter is 37 mm, there is no modification of the end of the bar for bar feeder collet needed. Machine is equipped in standard with two electro spindles with maximum speed 10.000 rpm each and with rotary guide bush synchronized by pulleys and belts with main spindle. Six linear CNC axes (X1, X2, Y1, Y2, Z1, and Z2) two rotary axes (C1, C2) enable to machine with high productivity the simple as well as complex parts. Big advantage of this model is possibility of parallel turning or milling with two tools in one time.

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

Machine Size
Dimentions	mm x mm x mm	3000 x 1370 x 2200
Machine Weight	kg	4350 kg
Machine Parameters
Maximal bar diameter - main spindle	mm	Ø 32
Maximum length of turning on one stroke	mm	400
Spindle bore	mm	Ø 37
Power (100/40%) main spindle	KW	3.7 / 7.5
Maximal speed	rpm	10000
Indexing direction		CW abd CCW
Main spindle stroke	mm	410
Rapid feed	m/min	30
Number of tool racks		2
Tool rack main - horizontal stroke	mm	45
Tool rack main - vertical stroke	mm	180
Tool position (turning)		(2 x 5) : 10
Tool shank	mm	16 x 16
Secondary spindle stroke	mm	260
Maximum bar diameter - sub spindle	mm	Ø 32
Maximal length of part inside the secondary spindle for frontal ejection	mm	150
Maximal length of part for frontal ejection	mm	170
Secondary spindle bore		Ø 37
Maximal speed of sub spindle	rpm	10000
Power (100/40%) secondary spindle	KW	3.7 / 5.5
Evacuation of parts through the sub spindle (for parts max Ø 26 mm)		Optional
Air Pressure	MPa	0.6
Air connection	mm	Ø 10
Coolant tank	I	300
Flowrate	I/min	100
Coolant pump pressure	MPa	0.7
Voltage	&nbsp	3 x 400 V - 50 Hz
Power Input	kVA	32
Cable section	mm x mm	16
Cicuit breaker, fuse	A	63
