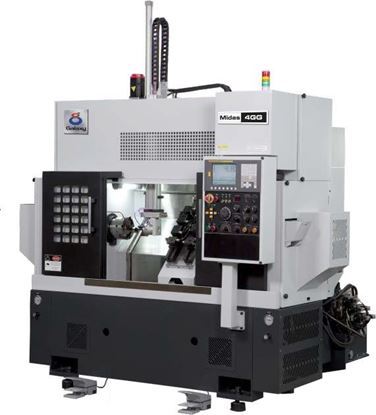

Midas 4GG

The Midas 4GG CNC Double Spindle Chucker is perfectly suited for 2- set up operations on symmetrical work - pieces . It has a very compact structure offering optimum use of available space in the workshop. The sturdy and the robust components such as the main bed, linear rails and spindle combined with powerful spindle motor allow you to achieve significant results:- optimal machining of all materials, especially tough alloys - reduction of cycle times and longer tool service life.

Key Features :-

Perfectly suited for adapting to Automation Solutions
Highest rapid traverse 30 m/min for X and Z axes
High spindle speed 4000 / 6000 rpm ( Optional )
Slant Bed for efficient chip disposal
Linear Tool Slide
Double Spindle ( opposed )
High Precision ball screws for X & Z axes
Precision Linear motion guides for X and Z axes
Lowest foot print area by compact layout of machine elements
Access doors to machine elements for easy maintenance
Compact and highly reliable interface hardware cabinet
Homing less axes operations using absolute encoders feed back
Optional hydraulic spindle brake for easy chuck/jaw removal
Separated Lube oil collection to prevent coolant contamination
Powerful interface software for machine functions with high safety
Ergonomically designed operator panel
Optional chucking systems, chip conveyor

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

CAPACITY
Turning diameter, Max.	mm	160 (6")
Turning length, Max.	mm	135 (5.3")
Swing over carriage	mm	160(6.3")
Swing Over Way Covers	mm	350 (13.8")
Distance Betn Left & Right Spindle Face	mm	1015 (40")
LEFT SPINDLE
Spindle size		A2-5
Front Bearing Bore	mm	75 (2.95")
Rear bearing bore	mm	65 (2.55")
Chuck Size	mm	165 (6")
Spindle Speed Max. (Opt.)	rpm	4000 (6000)
Spindle Power (30 Min. Rating)	kw	5.5
RIGHT SPINDLE
Spindle size		A2-5
Front Bearing Bore	mm	75 (2.95")
Rear bearing bore	mm	65 (2.55")
Chuck Size	mm	165 (6")
Spindle Speed Max. (Opt.)	rpm	4000 (6000)
Spindle Power (30 Min. Rating)	kw	5.5
TOOLING
Tooling Arrangement		Linear - Gang Tooling
Tool Shank Size	mm	20 x 20 x 125
		(0.75" x 0.75" x 5")
Boring Bar Dia. (Max.)	mm	32 (1.25")
FEED DRIVES
X Axis Rapid Traverse	mm/min	24 (944 ipm)
Z Axis Rapid Traverse	m/min	24 (944 ipm)
X Axis Stroke	mm	250 (9.84")
Z-Axis Stroke	mm	430 (17")
Type of Guide Ways (X & Z Axis)		LM Guides
ACCURACIES
Spindle Nose Run-out	mm	0.005 (0.0002")
X & Z Axes Accuracies		VDI 3441 JIS
Positioning Accuracies	mm	+/-0.010 �0.005
Repeatability	mm	0.005 0.0025
MACHINE MOUNTED GANTRY PART LOADER WITH TURN AROUND UNIT (OPTION)
Horizontal Axis Z Stroke	mm	740 (29.13")td>
Vertical Axis Y Stroke	mm	565 (22.24")
Horizontal Rapid Speed	m/min	40 (1575 ipm)
Vertical Rapid Speed	m/min	15 (590 ipm)
Max. Part Size	mmxmm	�65 x 65L (0.078" x 0.078")
Max. Part Weight	kg	2 (4.4 lb)
Part Loading on Left Spindle		Manual
Finished Part Unloading from Right Spindle		By Gantry to a Part Basket or a Belt Conveyor
MACHINE SIZE AND POWER
Length (without accessories)	mm	2650 (104.33")
Height (Without Gantry Loader)	mm	1625 (63.97")
Width	mm	1490 (58.66")
Height of Spindle center	mm	1120 (44")
Weight	kg	2500 (5500 lb)
Power Consumption (without options)	kva	12
Pneumatic Supply	bar	6
CONTROL
CNC System		Fanuc 0i-Mate TD Siemens 828D
