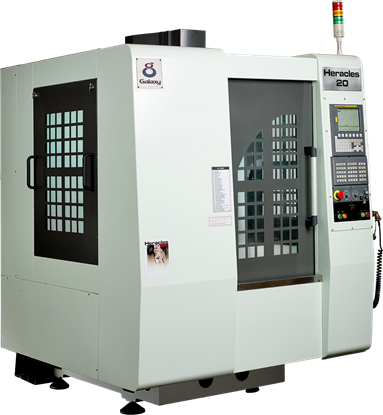

Heracles 20

The Optimally Designed Machine Structure gives the Heracles 20 the ultimate rigidity and stability. All structural parts are precisely machined on the sophisticated precision machines to achieve the highest geometrical accuracies. Then they are delivered to the machine manufacturing line for assembly with meticulous care by highly skilled technicians. At each step throughout the entire manufacturing process, each technician is always dedicated to pursue quality excellence with meticulous attitude.

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

TABLE
Table Size	mm x mm	650 x 400
Max. Loading Weight	kg	300
T-Slot (W x Nos. x P)	mm	14 x 3 x 125
TRAVEL
X-Axis	mm	500
Y-Axis	mm	400
Z-Axis	mm	300
Distance from Spindle Nose to Table Top Surface	mm	150 - 450
Distance from Spindle Center to Column Surface	mm	450
AXES
Guideways (X, Y, Z)		Linear Motion Ball Guides
Rapid Traverse (X, Y, Z)	m/min	48 x 48 x 48
Cutting Feed	mm/min	24000
SPINDLE
Spindle Speed	rpm	12000
Spindle Power (Short/Continuous Duty)	kw	5.5/3.7
Spindle Bore Taper		ISO30
AUTOMATIC TOOL CHANGER
Type of ATC		Servo Driven Front Mounted
No. of Tools (Std./Opt.)	Nos.	16/21
Tool Shank		BT 30
Tool Diameter, Max.
-with Adjacent Pockets Empty	mm	80
-with Adjacent Pockets Full	mm	80
Tool Length, Max.	mm	200
Tool Weight, Max. (Std.)	kg	2 (Total Weight 15 kg)
-(Opt.)	kg	3 (Total Weight 22 kg)
Tool Change Time (Tool-to-Tool)	sec	1.2
Tool Selection Method		Same Tool Same Pocket
Pull Stud Type		MAS 407 (BT)
ACCURACIES		JIS	VDI 3441
Positioning Accuracy	mm	+/- 0.003	+/- 0.006
Repeatability	mm	0.002	0.004
MACHINE SIZE & POWER
Length	mm	1700
Height	mm	1620
Width	mm	2400
Weight	kg	2000
Power Consumption (without options)	kva	12
Pneumatic Supply	bar	6
CONTROL
CNC System		Fanuc 0i-MF
Axes Servo Drive & Motor		Fanuc–βis
Spindle Servo Drive & Motor		Fanuc–βiI
