K'MX 432,632

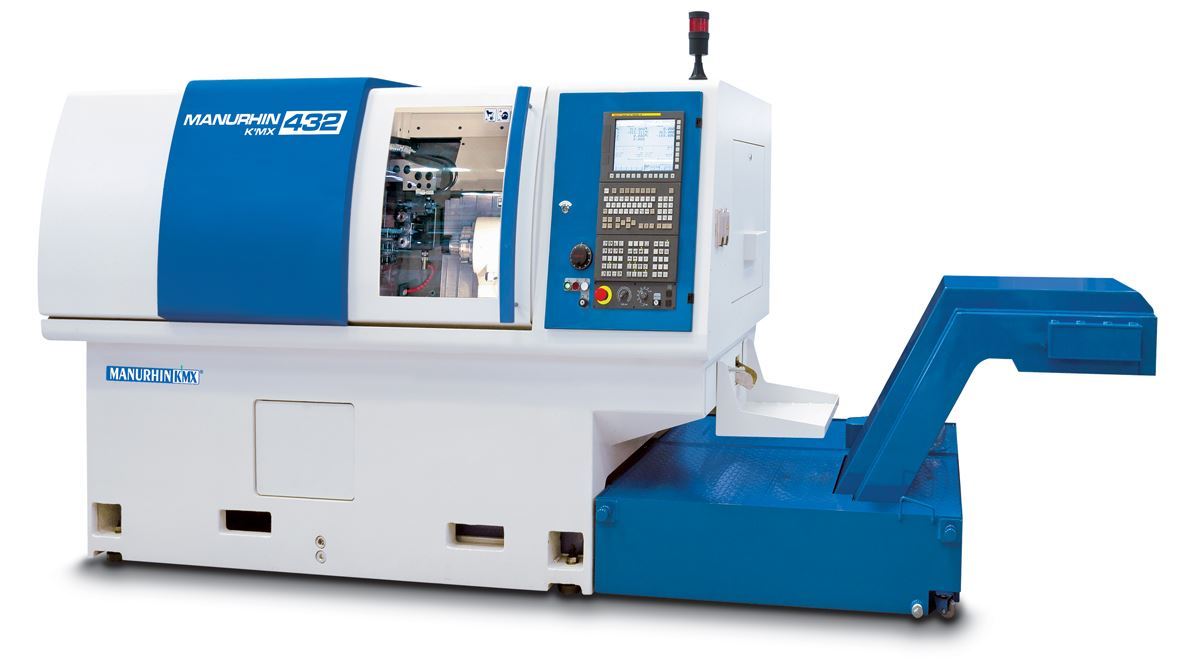

Sliding headstock (Swiss type) automatic lathe K'MX 432, 632 is designed for productive machining of parts from the bars of maximum diameter 32 mm. As the spindle bore diameter is 37 mm, there is no modification of the end of the bar for bar feeder collet needed. Machine is equipped in standard with two electro spindles with maximum speed 10.000 rpm each and with rotary guide bush synchronized by pulleys and belts with main spindle. Four linear axes (X1, Y1, Z1, aZ2); two rotary axes (C1, C2) enable to machine with high productivity the simple as well as complex parts. K‘MX 432, 632 is the ideal solution to manufacture parts with high productivity.

Download Brochure


Machine Size
Dimentions mm x mm x mm 3000 x 1370 x 2200
Machine Weight kg 4200 kg
Machine Parameters
Maximal bar diameter - main spindle mm Ø 32
Maximum length of turning on one stroke mm 400
Spindle bore mm Ø 37
Power (100/40%) main spindle KW 3.7 / 5.5
Maximal speed rpm 10000
Indexing direction   left and right
Main spindle stroke mm 410
Rapid feed m/min 30
Number of tool racks   1
Tool rack - horizontal stroke mm 80
Tool rack - vertical stroke mm 191
Tool positions (turning)   (2 x 5) : 10
Tool Shank mm 16 x 16
Secondary spindle stroke mm 260
Maximal bar diameter - sub spindle mm Ø 32
Maximal length of part inside the secondary spindle for frontal ejection mm 150
Maximal length of part for frontal ejection mm 170
Secondary spindle bore   Ø 37
Maximal speed of sub spindle rpm 10000
Power (100/40%) secondary spindle KW 3,7 / 5,5
Evacuation of parts through the sub spindle (for parts max Ø 26 mm) &nbps; Optional
Air Pressure bars 6
Air connection mm Ø 10
Coolant tank I 300
Flow I / min 100
Coolant pump pressure bars 7
Voltage &nbsp 3 x 400 V - 50 Hz
Power Input kVA 32
Cable section mm x mm 16
Cicuit breaker, fuse A 63
