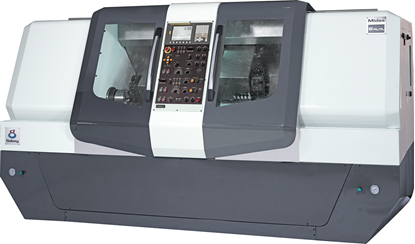

Midas 6TGM-TGM

MIDAS 6GG Series is a Unique Machine from GALAXY Range , based on the innovative concept of �Build- Your � Own � Machine!�

The Modular Machine Layout allows a user to choose from a wide variety of Tooling Layout Options so as to design a machine specific to his unique needs!

You can create your own combination of Linear Tooling slides and / or Tool Turrets , and choose from the following Options of Machine Configuration :-

POSSIBLE TOOL COMBINATIONS ON BOTH SLIDES
6G-G	6T-T
6GM-G	6TG-G	6GM-G	6TG-G	6GGM-G	6TGM-G
6GM-T	6TG-T	6GM-T	6TG-T	6GGM-T	6TGM-T
6GM-GM	6TG-GM	6GM-GM	6TG-GM	6GGM-GM	6TGM-GM
6GM-TG	6TG-TG	6GM-TG	6TG-TG	6GGM-TG	6TGM-TG
6GM-GGM	6TG-GGM	6GM-GGM	6TG-GGM	6GGM-GGM	6TGM-GGM
6GM-TGM	6TG-TGM	6GM-TGM	6TG-TGM	6GGM-TGM	6TGM-TGM

ABBREVIATIONS:-

G : GANG TOOLING

T : TURRET TOOLING

M : MILLING ( LIVE TOOL OPTION )

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

CAPACITY
Turning Diameter, Max.	mm	250 (9.84")
Turning length, Max.	mm	225 (8.85")
Swing over carriage	mm	105 (4.14")
Swing Over Way Covers	mm	400 (15.74")
Distance Betn Left & Right Spindle Face	mm	1569 (61.78")
LEFT SPINDLE
Spindle size		A2-5
Front Bearing Bore	mm	80 (3.15")
Rear bearing bore	mm	70 (2.75")
Chuck Size	mm	165 (6.5")
Spindle Speed Max. (Opt.)	rpm	4000 (6000)
Spindle Power (30 Min. Rating)	kw	7.5
RIGHT SPINDLE
Spindle size		A2-5
Front Bearing Bore	mm	80 (3.15")
Rear bearing bore	mm	70 (2.75")
Chuck Size	mm	165 (6.5")
Spindle Speed Max. (Opt.)	rpm	4000 (6000)
Spindle Power (30 Min. Rating)	kw	7.5
GANG TOOLING
Tooling Arrangement		Linear - Gang Tooling
Tool Shank Size	mm	25 x 25 x 150
		(1" x1" x 6")
Boring Bar Dia. (Max.)	mm	40 (1.5")
TURRET (Optional)
Index Mechanism		Electro Mechanical
No. of Tool Stations	mm	8
Tool Shank Size	mm	25 x 25 x 150
		(1" x 1" x 6")
Boring Bar Dia. (Max.)	mm	40 (1.5")
FEED DRIVES
X Axis Rapid Traverse	mm/min	40 (1575 ipm)
Z Axis Rapid Traverse	m/min	40 (1575 ipm)
X Axis Stroke	mm	250 (9.84")
Z-Axis Stroke	mm	225 (8.85")
Type of Guide Ways (X & Z Axis)		LM Guides
ACCURACIES
Spindle Nose Run-out	mm	0.005 (0.0002")
X & Z Axes Accuracies		JIS VDI 3441
Positioning Accuracies	mm	�0.005 +/-0.010
Repeatability	mm	0.0025 0.005
MACHINE SIZE AND POWER
Length (without accessories)	mm	3400 (133.85")
Height (Without Gantry Loader)	mm	2250 (88.58")
Width	mm	1800 (70.86")
Height of Spindle center	mm	1100 (43.30")
Weight	kg	4200 (9240 lb)
Power Consumption (without options)	kva	20
Pneumatic Supply		6
CONTROL
CNC System		Fanuc
