Biglia B545 - B565

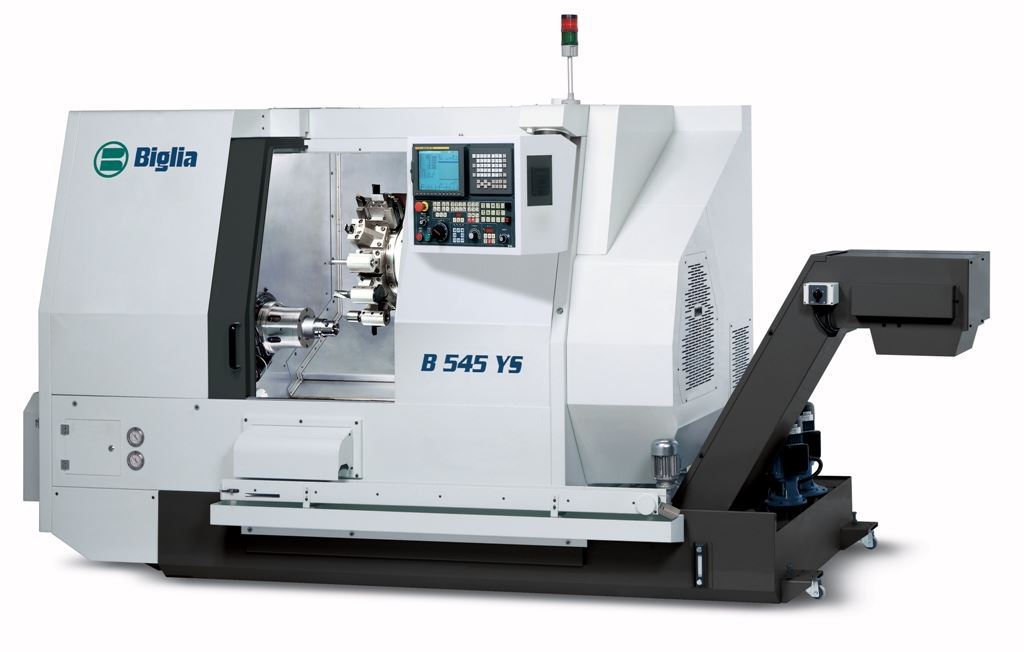

The new B545 / 565 models are the latest evolution of the established B510 series. BIGLIA now offers a range of high quality universal lathes that, thanks to the sturdy bed and the new BIGLIA turret, deliver: • THE NECESSARY RIGIDITY • ACCURACY • RAPIDITY IN MACHINING all of this combined with • GREAT RELIABILITY • VERY COMPETITIVE PRICES. The modular concept enables a wide range of alternative specifications and functions, from simple turning to complete machining using live tools, sub-spindle and C/Y axis. The new B545 / B565 models are available in 6 versions with bar capacity of 45 mm or 65 mm allowing to meet your every requirement in every application.

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

TORNIO MODELLO	MACHINE TYPE		B545	B565
CAPACITA'	MACHINING CAPACITY
Max. diam. lavorabile da barra	Bar capacity	mm	51	70
Max. diam. lavorabile da ripresa	Max. machining diameter	mm	220	290
Max. lunghezza lavorabile	Max. machining length	mm	560	560
Max. diametro rotante	Max. swing over diameter	mm	580	580
MANDRINO PRINCIPALE	MAIN SPINDLE
Velocità di rotazione max	Max. speed	giri/min - rpm	5000	4000
Naso mandrino	Spindle nose	ASA	5"	6"
Foro mandrino	Spindle bore	mm	55	76
Diametro interno cuscinetti	Inside diam. of bearings	mm	90	110
Autocentrante diametro	Chuck diameter	mm	165 / 210	210 / 250
Potenza motore	Motor power	KW	11 / 15	22 / 26
Coppia motore	Motor torque	Nm	79 / 108	189 / 223
CONTROTESTA	SUB-SPINDLE
Velocità di rotazione max	Max. speed	giri/min - rpm	5000	5000
Naso mandrino	Spindle nose	ASA	5”	5”
Foro mandrino	Spindle bore	mm	55	55
Foro passante utile	Drawtube inside diameter	mm	45	45
Diametro interno cuscinetti	Inside diam. of bearings	mm	90	90
Autocentrante diametro	Chuck diameter	mm	140 / 165	140 / 165
Potenza motore	Motor power	kW	7,5 / 11	7,5 / 11
Coppia motore	Motor torque	Nm	70 / 100	76 / 112
Rapido asse B	B-axis rapid traverse	m/min	30	30
TORRETTA	MACHINING CAPACITY
Numero posizioni	No of tools	N°	12	12
Stelo utensile per esterno/interno	Tool shank for OD/ID turning	mm	20 x 20 - 25 x 25 - Ø32	20 x 20 - 25 x 25 - Ø32
Tempo rotazione (1 pos)	Turret indexing (1 pos)	sec	0,15	0,15
UTENSILI MOTORIZZATI	LIVE TOOLING
Numero posizioni	No of live tools	N°	12	12
Velocità di rotazione max	Max. speed	giri/min - rpm	3000 (4000)•	3000 (4000)•
Potenza motore	Motor power	kW	3,7	3,7
Coppia motore	Motor torque	Nm	47	47
ASSE C	C-AXIS
Minimo valore programmabile	Min. programmable value	°	0,001	0,001
Max. velocità rapida	Max. rapid traverse	giri/min - rpm	100	100
ASSI	AXES
Corsa asse X	X-axis stroke	mm	170	170
Corsa asse Z	Z-axis stroke	mm	560	560
MCorsa asse Y	Y-axis stroke	mm	+55 / -50	+55 / -50
Corsa asse B	B-axis stroke	mm	490	490
Rapido asse X	X-axis rapid traverse	m/min	20	20
Rapido asse Z	Z-axis rapid traverse	m/min	24	24
Rapido asse Y	Y -axis rapid traverse	m/min	6	6
CONTROPUNTA	TAILSTOCK
Cono portapunta	Morse taper	C.M	5 / 4	5 / 4
Rapido asse B	B-axis rapid traverse	m/min	15	15
REFRIGERANTE	COOLING SYSTEM
Capacità vasca	Tank capacity	l	250	250
Portata pompa	Pump nominal displacement	l/min	230	230
Potenza motore pompa	Electropump motor rating	kW	1,5	1,5
DIMENSIONI - PESO	AXES
Ingombro con trasportatore trucioli	Machine with swarf conveyor	mm	4240 x 2000 x 1900 h*	4240 x 2000 x 1900 h*
Altezza centro mandrino	Spindle centre height	mm	1000	1000
Peso con trasportatore trucioli	Machine weight with swarf conv.	kg	4900**	5050***
