Galaxy Machinery. Midas 0g

Midas 0g

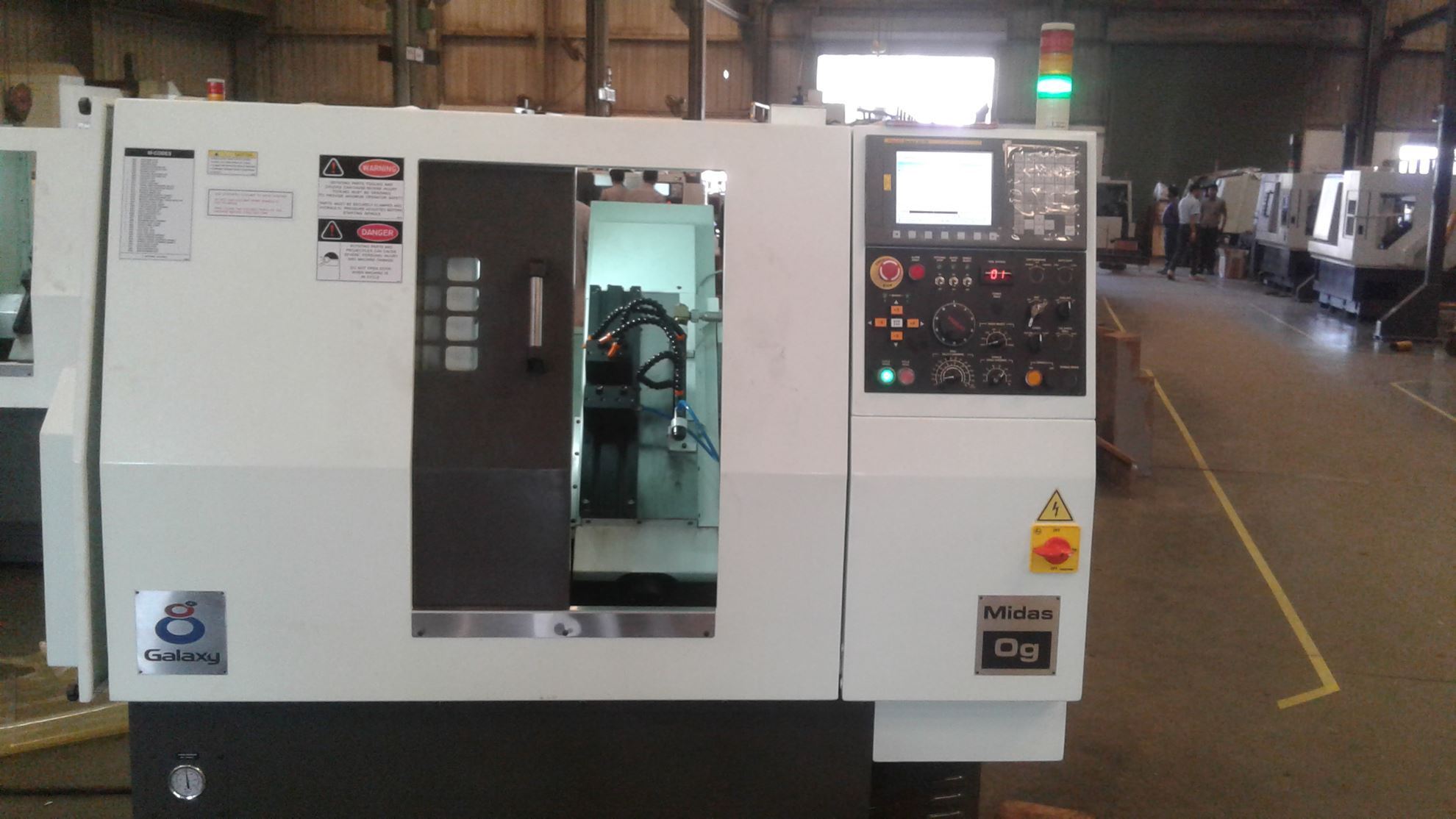

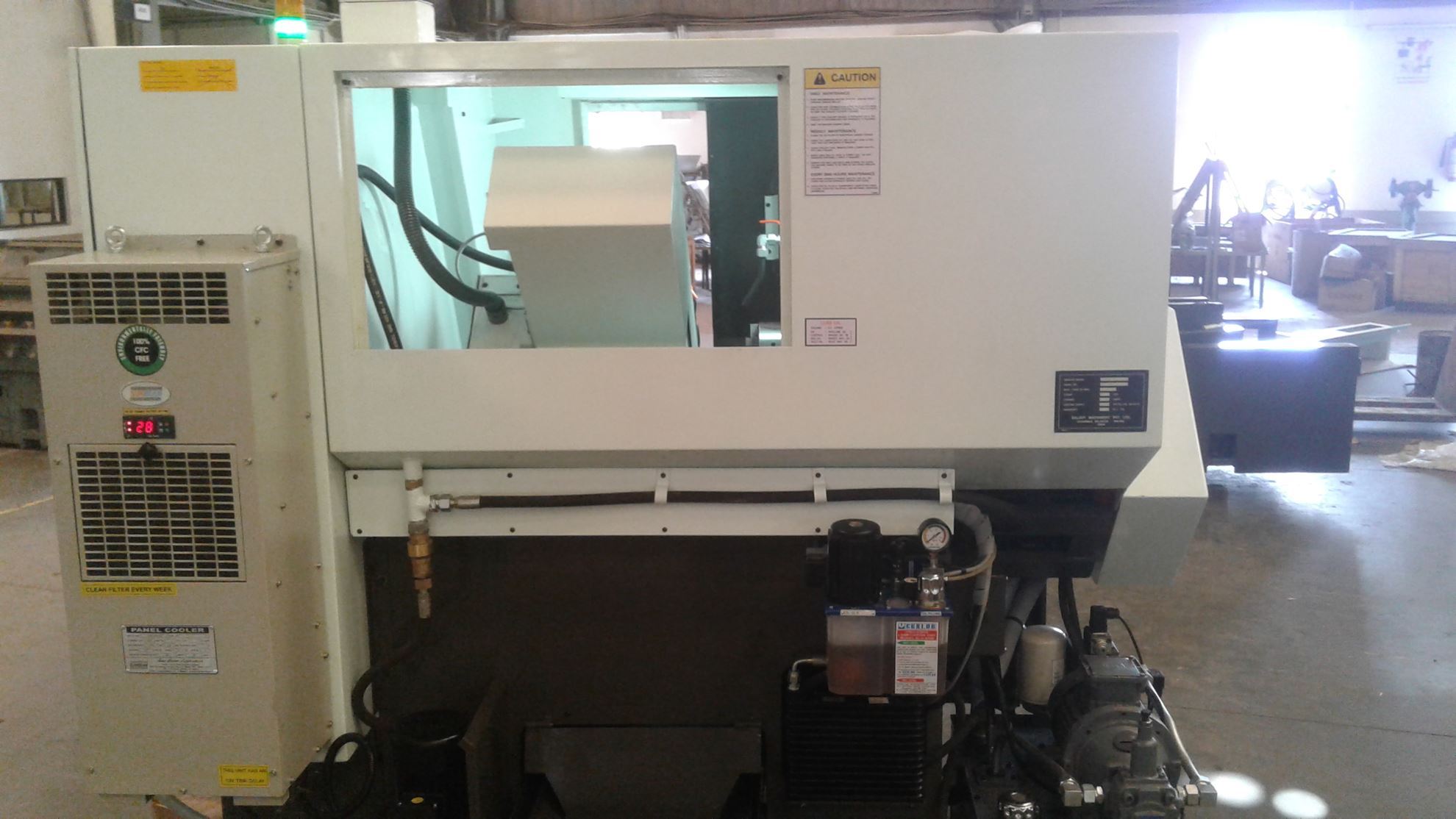

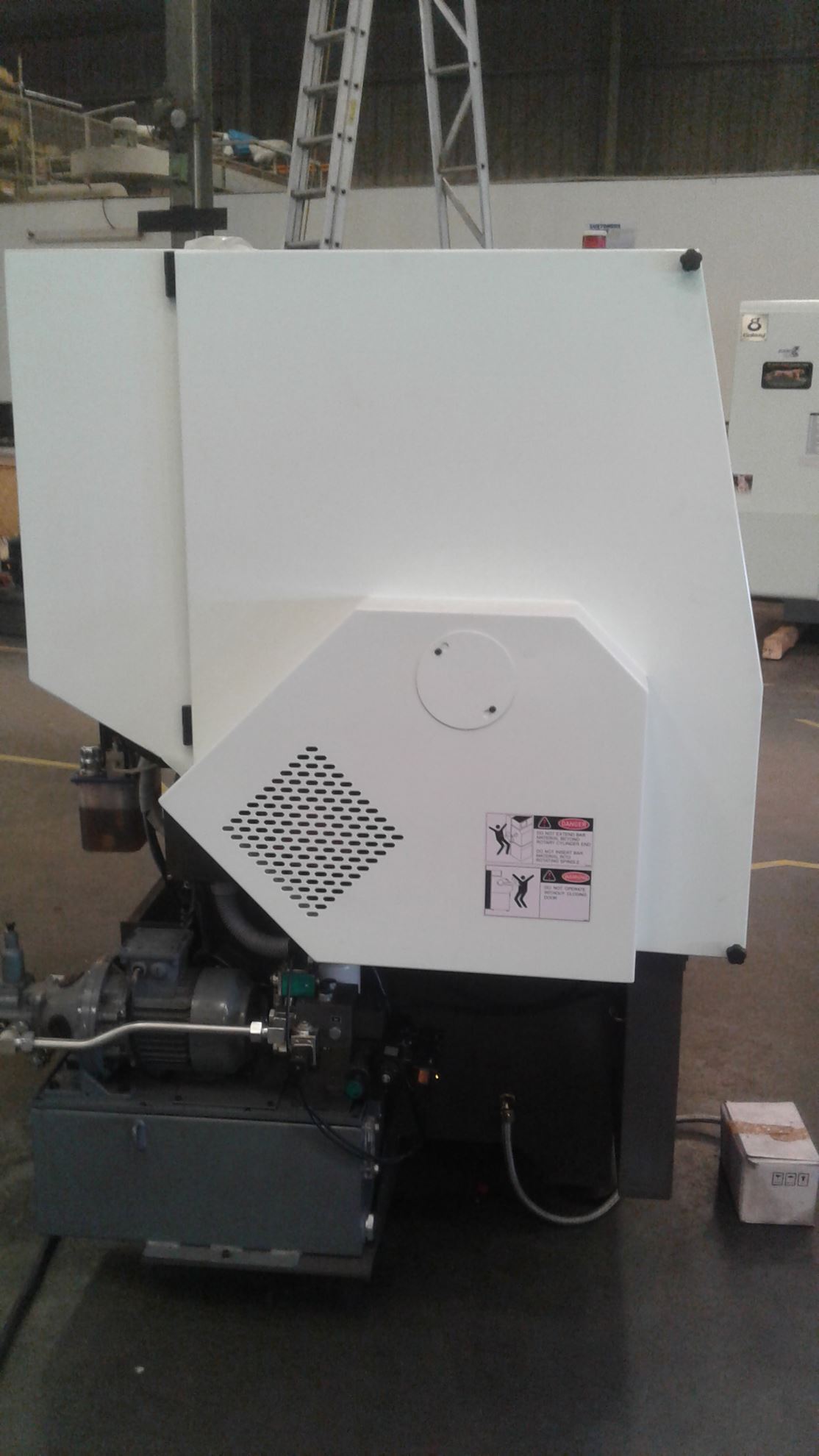

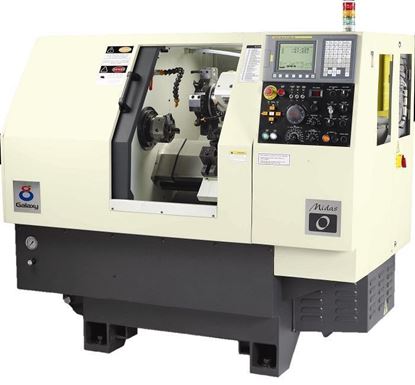

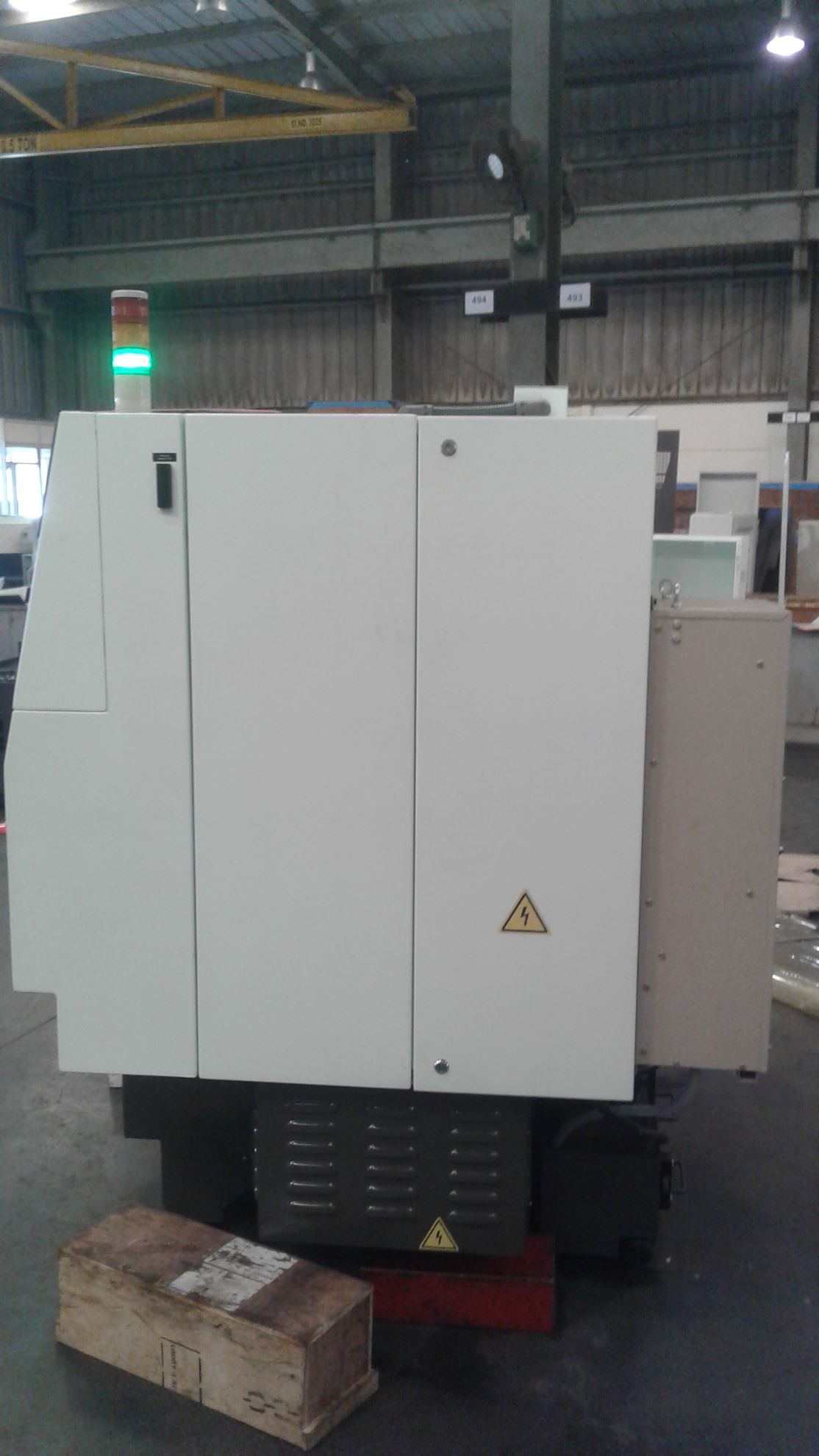

The Midas 0g CNC Chucker has a very compact structure offering optimum use of available space in the workshop. The sturdy and the robust components such as the main bed, linear rails and spindle combined with powerful spindle motor allow you to achieve significant results: - optimal machining of all materials, especially tough alloys - reduction of cycle times and longer tool service life .
Key Features :-
  • Highest rapid traverse 40 m/min for X and Z axes
  • High spindle speed 6000 rpm
  • Slant Bed for efficient chip disposal
  • Linear Tooling ( Quicker Tool Change & Higher Accuracy )
  • High Precision ball screws for X & Z axes
  • Precision Linear motion guides for X and Z axes
  • Lowest foot print area by compact layout of machine elements
  • Access doors to machine elements for easy maintenance
  • Compact and highly reliable interface hardware cabinet
  • Homing less axes operations using absolute encoders feed back
  • Optional hydraulic spindle brake for easy chuck/jaw removal
  • Separated Lube oil collection to prevent coolant contamination
  • Powerful interface software for machine functions with high safety
  • Ergonomically designed operator panel
  • Optional chucking systems, chip conveyor
  • Perfectly suited for adapting to Automation Solutions

Download Brochure


Turning diameter, Max. mm 100 (4")
Turning length, Max. mm 200 (7.87")
Swing clearance diameter
over carriage mm 80 (3.15")
over way covers mm 340 (13.39")
Spindle size   A2-4
Hole diameter through spindle mm 36 (1.42")
Front bearing bore size mm 75 (2.95")
Rear bearing bore size mm 65 (2.56")
Chuck size mm 135 (5.31")
Chuck package   GMT Hollow
Maximum Bar Capacity mm 26 (1")
Tooling Arrangement   Linear-Gang Tooling
Tool Shank size mm 20 x 20 x 125
    (0.75"x 0.75"x 5)
Boring bar Dia., Max. mm 32 (1.25)
Spindle Speed range rpm 60-6000
Spindle Power (15mins./Cont. Rating) kw 5.5 / 3.7 (7.5 hp/5 hp)
Rapid Traverse (X & Z Axes) mm/min 40000 (1575 ipm)
Programmable Travel
X-Axis mm 250 (9.84")
Z-Axis mm 250 (9.84")
Axis Thrust
X-Axis kg 125
Z-Axis kg 125
Guide Ways (X & Z Axes)   Linear Motion Guides
Maximum spindle run out at nose mm 0.005 (0.00019")
X & Z Axes Accuracies   JIS VDI 3441
Positioning Accuracies mm 0.005 +/-0.010
Repeatability mm 0.0025 0.005
Length (without accessories) mm 1870 (73.62")
Height (Includes Mist collector) mm 1600 (62.99")
Width mm 1380 (54.33")
Height of Spindle center mm 1120 (44.09")
Weight kg 2100 (4620 lb)
Power Consumption (without options) kva 10
CNC System   Fanuc / Siemens
Axes Drive Package   Fanuc / Siemens
Spindle Drive Package   Fanuc / Siemens
