Biglia B446 - T3 B465

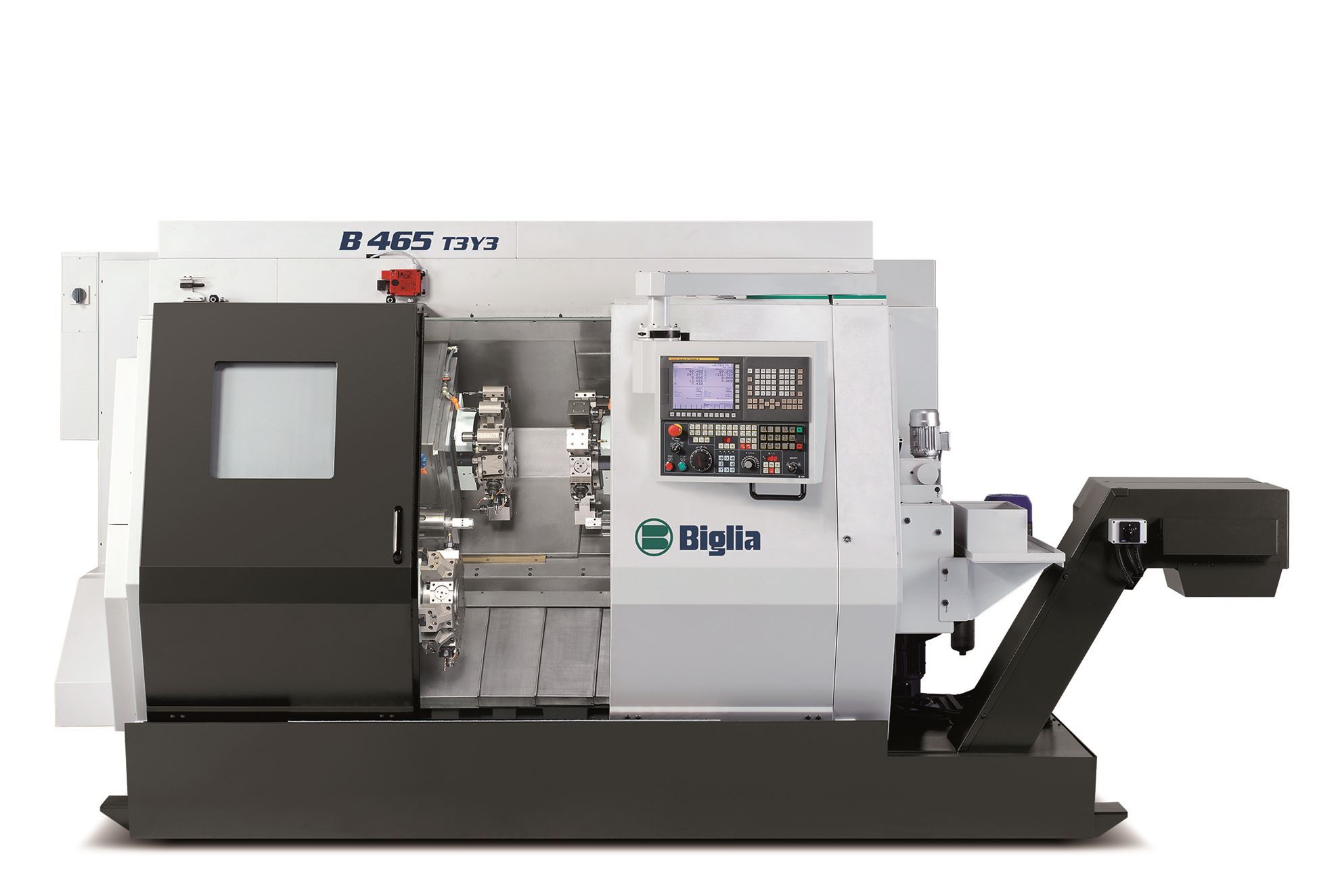

Biglia B465 T3Y3

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

		B446 T3	B465 T3
MACHINING CAPACITY
Max. diam. lavorabile da barra	mm	51	70
Max. diametro lavorabile da ripresa	mm	230	230
Max. lunghezza lavorabile	mm	350	350
Max. diametro rotante	mm	220	220
MAIN SPINDLE
Max. speed	rpm	5000	5000
Spindle nose	ASA	5"	5"
Spindle bore	mm	55	55
Drawtube inside diameter	mm	45	45
Inside diameter of bearings	mm	90	90
Chuck diameter	mm	165	165
Motor power (see diagram 2)	kW	11	11
C axis: min. programmable value	°	0,001°	0,001°
B-axis: stroke - rapid traverse	mm-m/min	655 - 30	655 - 30
UPPER TURRET (1-left)
UPPER TURRET (2-right)
LOWER TURRET 3
No of tools	N°	12	12
Turret indexing (1 pos)	sec	0,15	0,15
No of live tools	N°	12	12
Max. speed	rpm	4000	4000
Motor power (see diagram 4)	kW	3,7	3,7
X1-X2-X3 axis: stroke - rapid traverse	mm-m/min	170 - 18	170 - 18
Z1-Z2 axis: stroke - rapid traverse	mm-m/min	230 - 30	230 - 30
Z3 axis: stroke - rapid traverse	mm-m/min	540 - 30	540 - 30
Y1-Y2-Y3 axis: stroke - rapid traverse	mm-m/min	90 [-40/+50] - 9	90 [-40/+50] - 9
COOLING SYSTEM
Tank capacity	l	450	450
Motor rating of 4 electropumps	kW	4,8	4,8
DIMENSIONS AND WEIGHT
Machine with swarf conveyor	mm	4550 x 2110 x 2210 h
Spindle centre height	mm	1115	1115
Machine weight with swarf conv.	kg	8200	8400
