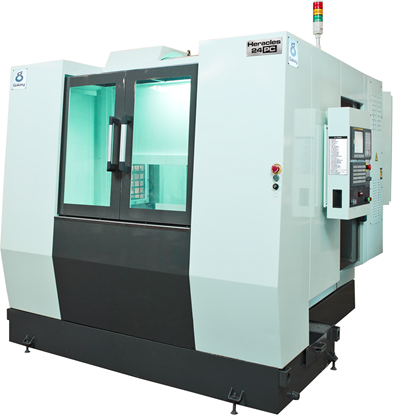

Heracles 24 PC

The Optimally Designed Machine Structure gives the Heracles 24 PC the ultimate rigidity and stability. All the pre-manufacturing design analysis was undertaken to optimize machine structure design with greater stability of structural assembly quality and to upgrade cutting performance by means of dynamic rigidity test and spectrum analysis for vibration, so that we can fully meet customers' requirements for high machining efficiency with greater accuracy. It has following features

STANDARD FEATURES :-

Precision Linear Motion Guides for X,Y and Z Axes
Rigid Tapping
Spindle Air Blast
Pre-Tensioned Ball Screws for all axes
Panel Cooler for Electrical Cabinet
Fully Enclosed Splash Guards
Pneumatic System
Spindle Oil Cooler

OPTIONAL FEATURES :-

Coolant Through Spindle
Auto Tool Length Measurement
Work Piece Measurement
Linear Scales
High Pressure Coolant Pump
4th and 5th Axes Rotary Table Unit

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

TABLE
Table Size	mm x mm	800x450
Loading Weight, Max.	kg	600
T-Slot (W x Nos. x P)	mm	-
TRAVEL
X-Axis	mm	650
Y-Axis	mm	450
Z-Axis	mm	510
Distance from Spindle Nose to Table Top	mm	150-660
Distance from Spindle Center to Column	mm	500
AXES
Guideways (X, Y, Z Axes)		Linear Motion Roller Guides
Rapid traverse (X, Y, Z Axes)	m/min	48 x 48 x 48
Cutting Feed	mm/min	24000
SPINDLE
Spindle Speed	rpm	12000
Spindle Power (Short/Continuous Duty)	kw	11/7.5
Spindle Bore Taper		ISO40
AUTOMATIC TOOL CHANGER
Type of ATC		Cam-Driven Twin Arm-Disc
No. of Tools (Std./Opt.)	nos..	24/40/60
Tool Shank		BT 40
Tool Diameter, Max.
-with Adjacent Pockets Empty	mm	75
-with Adjacent Pockets Full	mm	150
Tool Length, Max.	mm	250
Tool Weight, Max. (Std.)	kg	8
-(Opt.)	kg	-
Tool Change Time (Tool-to-Tool)	sec	1
Tool Selection Method		Random
Pull Stud Type		MAS 407 ( BT)
AUTOMATIC PALLET CHANGER (Option)
Type of Pallet Changer		Front Mounted-Rotary
No. of Pallets	nos	2
Load per Pallet, Max.	Kg	250
Pallet Change Time	sec	600x400
Pallet Size	mm	8
ACCURACIES		JIS	VDI 3441
Positioning Accuracy	mm	+/-0.005	+/-0.010
Repeatability	mm	0.0025	0.005
MACHINE SIZE & POWER (Std.)
Length	mm	3400
Width	mm	2100
Height	mm	2700
Weight	kg	6200
Power Consumption	kva	25
Pneumatic Supply	bar	6
CONTROL
CNC System		Fanuc-0i-MF
Axes Servo Drive & Motor		Fanuc–βis
Spindle Servo Drive & Motor		Fanuc–αiI
