Midas 10

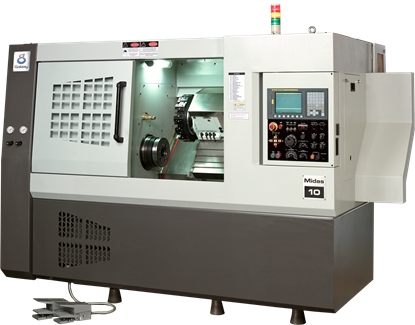

The Midas 10 CNC Universal Turning Center is a heavy duty lathe for precision machining of medium to large work pieces.

It has a very compact structure offering optimum use of available space in the workshop. The sturdy and the robust components such as the main bed, linear rails and spindle combined with powerful spindle motor allow you to achieve significant results: - optimal machining of all materials, especially tough alloys - reduction of cycle times and longer tool service life .

Key Features :-

Highest rapid traverse 40 m/min for X and Z axes
High torque spindle speed 3000 / 6000 rpm ( Optional )
Slant Bed for efficient chip disposal
8 Station Tool Turret
Tail Stock
High Precision ball screws for X & Z axes
Precision Linear motion guides for X and Z axes
Lowest foot print area by compact layout of machine elements
Access doors to machine elements for easy maintenance
Compact and highly reliable interface hardware cabinet
Homing less axes operations using absolute encoders feed back
Optional hydraulic spindle brake for easy chuck/jaw removal
Separated Lube oil collection to prevent coolant contamination
Powerful interface software for machine functions with high safety
Ergonomically designed operator panel
Optional chucking systems, chip conveyor
Perfectly suited for adapting to Automation Solutions

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

CAPACITY
Turning Diameter, Max.	mm	330 (13”)
Turning Length, Max.	mm	522 (20.55")
Swing Clearance Diameters
Over Carriage	mm	230 (9.01")
Over Way Covers	mm	430 (16.93")
SPINDLE
Spindle Size		A2-6
Hole Diameter Through Spindle	mm	76 (3”)
Front Bearing Bore Size	mm	105 (4.13”)
Rear Bearing Bore Size	mm	95 (3.7”)
CHUCK
Chuck Size	mm	254 (10”)
Bar Capacity, Max.	mm	63.5 (2.5”)
TURRET
Index Mechanism		Electro - Mechanical
No. of Tool Stations		8
Turning Tool shank size	mm	25x25x150 (1"x1"x 6")
Boring Bar Dia Max	mm	40 (1.5”)
SPINDLE DRIVE
Spindle Speed Range	rpm	40-4000
Spindle Power (30 Mins. / Cont. Rating)	kw	15/11 (20hp/15hp)
FEED DRIVES
Rapid Traverse (X & Z Axes)	mm/min	30000 (1180 ipm)
Programmable Travel
X Axis	mm	165 (6.5”)
Z Axis	mm	522 (20.55”)
Axis Thrust
X Axis	kg	432 (950 lb)
Z Axis	kg	432 (950 lb)
Guide Ways (X & Z Axes)		Linear Motion Bearings
TAILSTOCK
Quill Diameter	mm	80 (3.2")
Quill Taper Size		MT4
Quill Thrust Max.	kg	750 (1650 lb)
Quill Stroke	mm	120 (4.7”)
Tailstock Base Travel	mm	339 (13.35”)
ACCURACIES
Maximum Spindle Run Out At Nose	mm	0.008 (0.00032”)
X & Z Axes Accuracies		VDI 3441 JIS
Positioning Accuracy	mm	+/-0.010 +/-0.005
Repeatability	mm	0.005 0.0025
MACHINE SIZE AND POWER
Length (without accessories)	mm	2460 (96.85”)
Height	mm	1825 (71.85”)
Width	mm	1608 (63.60”)
Height of Spindle Center	mm	1025 (40.35”)
Weight	kg	3900 (8598 lb)
Power consumptions(without options)	kva	25
CONTROL
CNC System		Fanuc / Siemens
Axes Drive package		Fanuc / Siemens
Spindle Drive Package		Fanuc / Siemens
