Biglia B446 - T2 B465

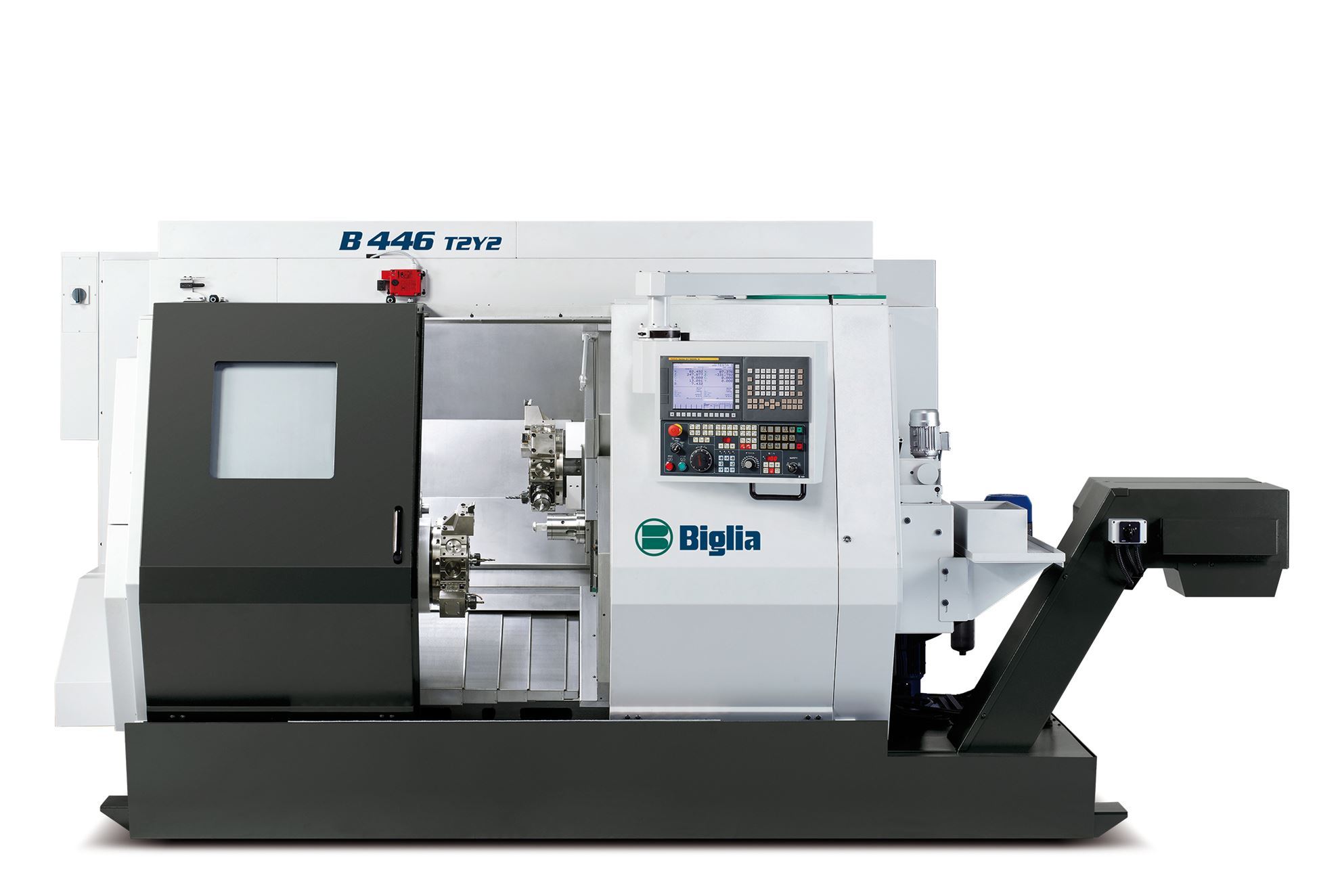

20 years after the launch of the first QUATTRO machine, this range of double-spindle and double-turret turning centers for bar machining celebrating the third generation is now further enhanced by the new range of QUATTRO Y2: the latest evolution of the established B445/B470Y series. The main performance benefits offered by the 30-degree slant bed and the robust machine components such as the structure, guides and turrets are: - Great rigidity allowing to machine tough materials - Perfect removal of chippings - Reduction of cycle times and longer tool service life - Up to 30 tools available for machining of complex parts and reduced set-up times - Ergonomics and easy access for retooling operations. The modular design allows a wide range of customized configurations to be offered, resulting in extremely efficient and flexible production of simple to complex parts using live tools, C-axis and Y-axis. The QUATTRO Y2 turning centers are available in three configurations featuring 45 and 65 mm bar capacity.

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

		B446 T2	B465 T2
MACHINING CAPACITY
Bar capacity	mm	51	70
Max. machining diameter	mm	200	200
Max. machining length	mm	350	350
Max. swing over diameter	mm	220	220
MAIN SPINDLE
Max. speed	rpm	5000	5000
Spindle nose	ASA	5"	6"
Spindle bore	mm	59,5	78
Inside diameter of bearings	mm	90	110
Chuck diameter	mm	165/210	165/210
Motor power	kW	15 (diagram 2)	26 (diagram 1)
C axis: min. programmable value	°	0,001°	0,001°
SUB-SPINDLE
Max. speed	rpm	5000	5000
Spindle nose	ASA	5"	5"
Spindle bore	mm	55	55
Drawtube inside diameter	mm	45	45
Inside diameter of bearings	mm	90	90
Chuck diameter	mm	165	165
Motor power (see diagram 3)	mm	11	11
C-axis: min. programmable value	°	0.001°	0.001°
Offset stroke	mm-m	115	115
B-axis: stroke - rapid traverse	mm-m/min	655 - 30	655 - 30
UPPER TURRET 1 - LOWER TORRET 2
No of tools	N°	12	12
Turret indexing (1 pos)	sec	0,15	0,15
No of live tools	N°	12	12
Max. speed	rpm	4000	4000
Motor power (see diagram 4)	kW	3,7	3,7
X1-X2 axes: stroke - rapid traverse	mm-m/min	170 - 18	170 - 18
Z1-Z2 axes: stroke - rapid traverse	mm-m/min	630-540 - 30	630-540 - 30
Y1-Y2 axes: stroke - rapid traverse	mm-m/min	90 [-40/+50] - 9	90 [-40/+50] - 9
COOLING SYSTEM
Tank capacity	l	450	450
Motor rating of 3 electropumps	kW	3,7	3,7
DIMENSIONS AND WEIGHT
Machine with swarf conveyor	mm	4550 x 2110 x 2210 h
Spindle centre height	mm	1115	1115
Machine weight with swarf conv.	kg	7900	8100
