Galaxy Machinery. K'MX 816 CLEVER

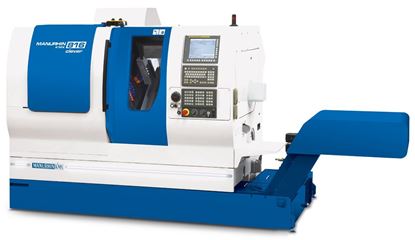

Sliding headstock (Swiss type) automatic lathe MANURHIN K’MX 816 CLEVER is designed for productive machining of parts from the bars of maximal diameter 16 or 20mm. Machine is equipped in standard with two electro spindles and with rotary guide bush synchronized by pulleys and belts with main spindle. Eight linear CNC axes and two rotary axes enable to machine with high productivity the simple as well as complex parts. Construction solution enables the use of 4 tools at the same time.

Download Brochure


Machine Size
Dimentions mm x mm x mm 2000 x 1280 x 1740
Machine Weight kg 3200 kg
Machine Parameters
Maximal bar diameter - main spindle mm Ø 16 (*Ø 20)
Maximum length of turning on one stroke mm 220
Spindle bore main spindle mm Ø 21 (*Ø 23)
Power of electrospindle motor KW 3.7 / 5.5
Maximal spindle speed rpm 12000
spindle direction   left and right
Main spindle stroke mm 220
Rapid feed m/min 30
Number of tool racks   2
Tool rack - horizontal stroke X1 mm 90
Tool rack - vertical stroke Y1 mm 319
Tool rack horizontal U1 mm 30
Tool rack vertical V1 mm 319
Tool rack axial - horizontal stroke Z2 mm 225
Tool positions (turning)   (2 x 10) + (2 x 6)
Tool shank mm 12 x 12
Sub spindle stroke mm 345
Maximum bar diameter mm Ø 16 (*Ø 20)
Maximal length of part inside the secondary spindle for frontal ejection mm 160
Maximal length of part for frontal ejection mm 160
Spindle bore sub spindle   Ø 21 (*Ø 23)
Maximal sub spindle speed giri/min 12000
Power of electrospindle motor KW 3.7 / 5.5
Evacuation of part through sub spindle   Opzione
Air Pressure required bar 6
Air connection mm Ø 10
Coolant tank I 200
Flow I/min 100
Coolant pump pressure bar 7
Voltage   3 x 400 V - 50 Hz
Power Input kVA 31
Cable section mm x mm 16
Fuses for circuit A 63
