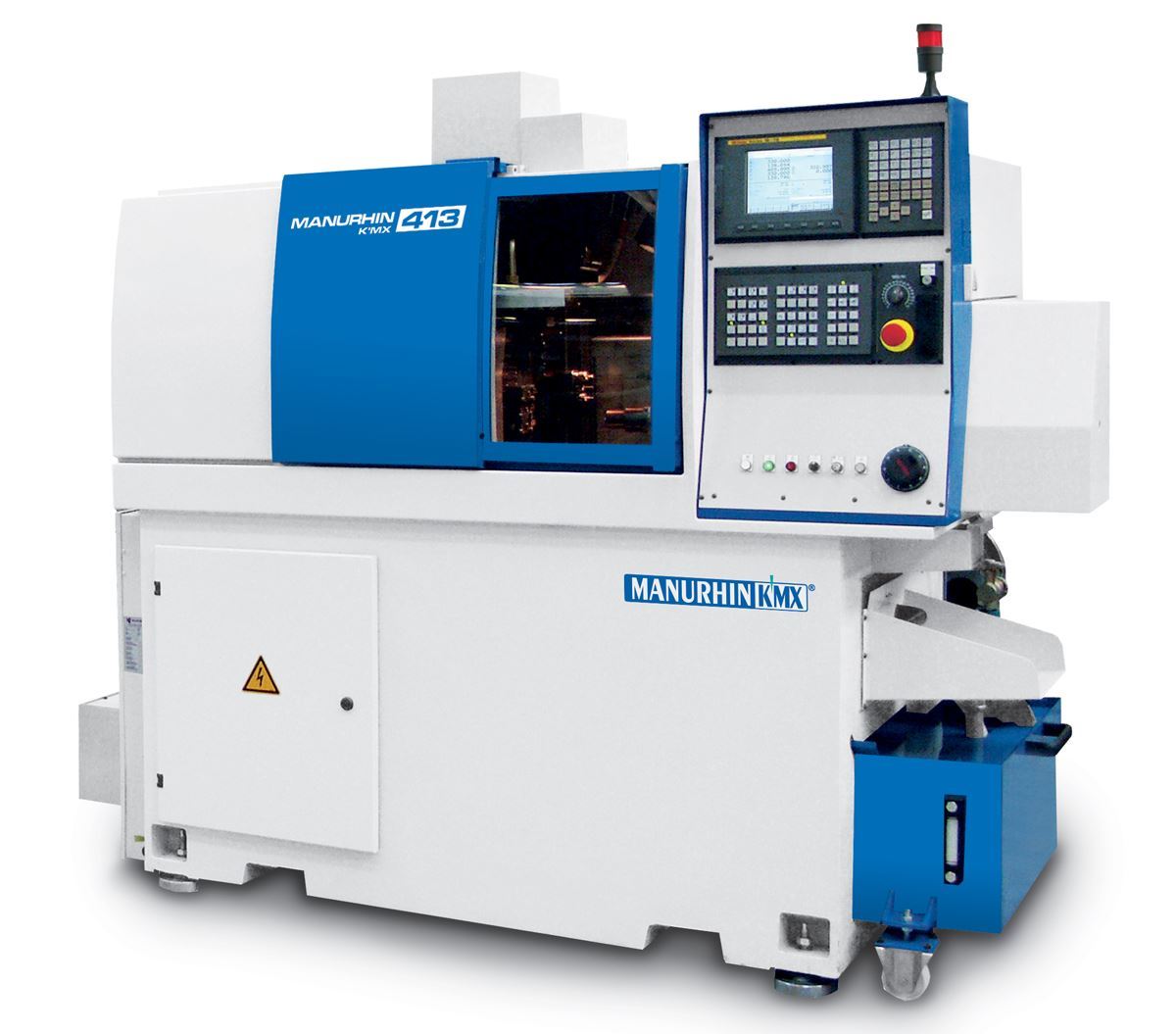

K'MX 413

K’MX 413 is dedicated to run small parts from Ø 2–16 mm (over Ø 13 mm a preparation of bars is necessary in standard, as option can be used full Ø 16 mm bar without preparation). Designed as an all package, the K’MX 413 is standardized and ready to produce. Sub spindle, powered tools are included in the basic machine as well as the bar loader. The light kinematic and FANUC 0i controller provides an easy and quick programming reducing the setup time. With 2 electro spindles, 3 powered tools, C-axis, and up to 12 fixed tools, the K’MX 413 is also able to run sophisticated parts. With this machine, GALAXY-TAJMAC Machinery wants to offer an economical, reliable and easy solution.

Download Brochure

Name: Name is required.

Company Name: Company is required.

Designation: Designation is required.

Address:

City: City is required.

State: State is required.

Contact No.: Phone is required.

Email: Email is required.

Website: Website is required.

Message: Message is required.

SPECIFICATIONS

Main spindle
Max. machining lengthon one feeding	130 mm
Spindle bore	Ø 17 (19) mm
Bar capacity	Ø 13 (16) mm
Maximum bar capacity	Ø 16 mm
Power of electrospindle motor	(100/60%) 3,7/5,5 kW
Maximum spindle speed	12000 rpm
Spindle direction	left and righ
Sliding headstock stroke	130 mm
Rapid fee	25 m/min
Horizontal stroke of slide	2×30 mm
Rapid feed	25 m/min
Vertical stroke of slide	135 mm
Rapid feed	25 m/min
Number of external tool stations	(max.) 8
Tools shank size OD operations	12×12 mm
Number of internal tool station	(max.) 3
Boring for ID tool shank	Ø 16 mm
Number of powered tools	3
Collet size	ER 11/ ET 1–12
Maximum speed on 2 stations	8000 ot/min
Maximum speed on 1 stations	2600 ot/min
Subspindle
Stroke of longitudinal slide	150 mm
Rapid feed	25 m/min
Bar capacity	Ø 13 mm
Maximum bar capacity	Ø 16 mm
Power of electrospindle motor	(100/60%) 2,2/3,7 kW
Maximum spindle speed	12000 rpm
Maximum length of part inside the spindle	95 mm
Maximum length of part for frontal ejection	130 mm
Evacuation of part through sub spindle	option
Air pressure required	6 bar
Connection by "Banjo" coupling	Ø 10 mm
Tank capacit	120 l
Flowrat	63 l/min
Pressur	2 bar
Voltage	3×400 V – 50 Hz
Total absorbed power	21 kVA
Fuses for circuit	32 A
Dimensions	1990×1050×1700 mm
Weight	2000 kg
