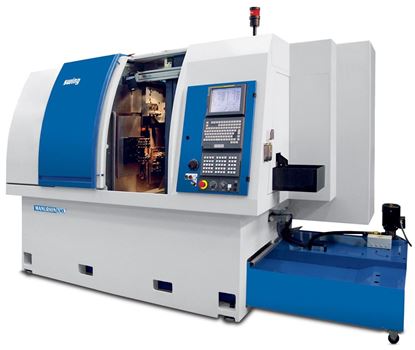

The K’MX SWING 10 AXIS is dedicated to machining complex parts from the bar up to o 32 mm. The SWING 10 AXIS is delivered in two versions – for bars Ø 26 and Ø 32 mm. The main characteristics from K’MX SWING 10 AXIS are: Productivity, up to 23 tools including 14 powered tools, up to 4 tools, working simultaneously with 10 independent axes. An easy and quick tool change with the compatible tool holder cartridge system. A simplified programming with K’MX PLUS software, Ergonomic and easy access with large opening door and a numerical control working under, WINDOWS. K’MX SWING is the ideal solution to manufacture complex parts with high productivity and useful for the operator.

Download Brochure

SPECIFICATIONS

Main spindle
Maximum bar capacity Ø 26 (32*) mm
Max. machining length in one feeding 250 mm
Main spindle bore Ø 33 mm
Max. power of A. C. motor 7,5 KW
Maximum spindle speed 8 000 (10 000) rpm
Spindle direction left and right
Headstock stroke 250 mm
Rapid feed 30 m/min
Number of slides 2
Stroke 2 x 45 mm
Rapid feed 30 m/min
Number of slides 2
Stroke of vertical slide 2 × 180 mm
Rapid feed 30 m/min
Number of tools (2 × 5) : 10
Tool shank size 16 × 16 mm
Stroke of vertical slide 343 mm
Rapid feed 16 m/min
Number of tools 4
Stroke of longitudinal slide 230 mm
Rapid feed 30 m/mi
SUBSPINDLE –Vertical Slide
Vertical stroke 452 mm
Rapid feed 16 m/min
Stroke of longitudinal slide 215 mm
Rapid feed 30 m/min
Maximum bar capacity Ø 26/(32) mm
Max. Length of part inside the Sub spindle for frontal ejection 150 mm
Maximum length of part For frontal ejectio 170 mm
Spindle bore Ø 26,5/ (33) mm
Maximum spindle speed 8 000 rpm
Max. power of A. C. 5,5 kW
Air pressure required 6 bars
Connection by “Banjo” coupling Ø 10 mm
Tank capacit 200 l
Pressur 2,8 bars
Voltage 3 × 400 V – 50 Hz
Total absorbed power 32 kVA
DIMENSIONS 3100 × 1420 × 1960 mm
Weight 4250 kg
