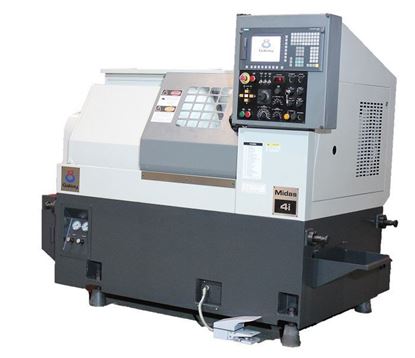

The Midas 4i CNC Universal Turning Center has a very compact structure offering optimum use of available space in the workshop. The sturdy and the robust components such as the main bed, linear rails and spindle combined with powerful spindle motor allow you to achieve significant results: - optimal machining of all materials, especially tough alloys - reduction of cycle times and longer tool service life .
Key Features :-
- Highest rapid traverse 40 m/min for X and Z axes
- High spindle speed 6000 rpm
- Slant Bed for efficient chip disposal
- 8 Station Tool Turret
- Tail Stock
- High Precision ball screws for X & Z axes
- Precision Linear motion guides for X and Z axes
- Lowest foot print area by compact layout of machine elements
- Access doors to machine elements for easy maintenance
- Compact and highly reliable interface hardware cabinet
- Homing less axes operations using absolute encoders feed back
- Optional hydraulic spindle brake for easy chuck/jaw removal
- Separated Lube oil collection to prevent coolant contamination
- Powerful interface software for machine functions with high safety
- Ergonomically designed operator panel
- Optional chucking systems, chip conveyor
- Perfectly suited for adapting to Automation Solutions
